Desiccant Air Dryer for Pharma Industry

Introduction

In the pharmaceutical industry, compressed air is not just a utility—it is a critical process medium. From tablet coating and capsule filling to packaging and cleanroom operations, the quality of compressed air directly impacts product safety, regulatory compliance, and operational efficiency. This is where a Desiccant Air Dryer becomes indispensable. Designed to deliver ultra-dry air with extremely low dew points, desiccant air dryers play a vital role in meeting the stringent standards of pharmaceutical manufacturing.

What Is a Desiccant Air Dryer?

A desiccant air dryer removes moisture from compressed air using hygroscopic materials like activated alumina or molecular sieves. Unlike refrigerated dryers, desiccant dryers can achieve pressure dew points as low as –40°C to –70°C, making them ideal for pharmaceutical and other critical applications.

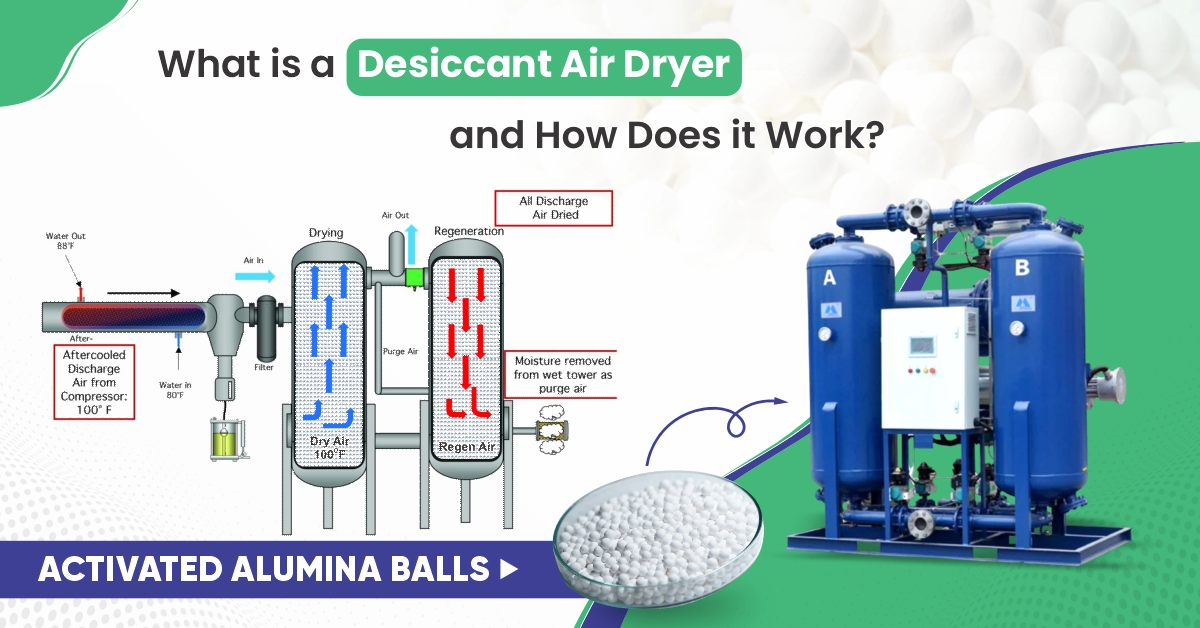

Working Principle

Compressed air enters the dryer
Moisture is absorbed by the desiccant material
One tower dries the air while the other regenerates
Continuous supply of ultra-dry air is ensured

Why Dry Air Is Critical in Pharmaceutical Manufacturing?

Moisture in Compressed Air can lead to:

Microbial growth
Product contamination
Corrosion of pipelines and equipment
Process inconsistency
Regulatory non-compliance

Pharmaceutical plants operate under strict guidelines such as GMP, WHO, US FDA, and ISO standards, where even trace moisture can compromise product quality. A desiccant air dryer ensures consistent, moisture-free compressed air, safeguarding both products and processes.

Key Applications in the Pharmaceutical Industry

Desiccant air dryers are widely used in:

Tablet and capsule manufacturing
Blister packing machines
Fluid bed dryers
Powder conveying systems
Cleanroom air supply
Fermentation and biopharma processes
Instrumentation and control air

In all these applications, dry, oil-free, and contaminant-free air is non-negotiable.

Types of Desiccant Air Dryers Suitable for Pharma

Heatless Desiccant Air Dryers Ideal for critical applications requiring consistent dew point with simple operation.

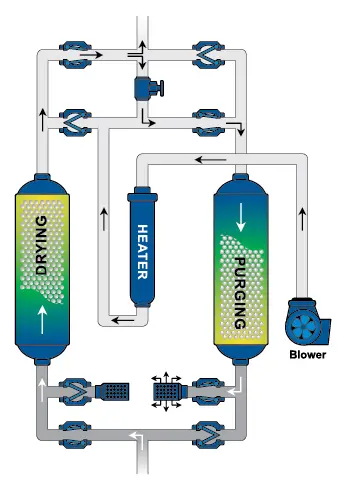

Heated Blower Desiccant Dryers Energy-efficient choice for large pharmaceutical plants.
Twin Tower Desiccant Dryers Ensures uninterrupted supply of dry air during regeneration cycles.

Important Selection Criteria for Pharma Plants

When choosing a desiccant air dryer for pharmaceutical use, consider:

Required pressure dew point
Airflow capacity (CFM / Nm³/hr)
Air quality class as per ISO 8573-1
Energy consumption
Validation and documentation support
Compatibility with oil-free compressors

Proper sizing and integration with compressed air filters is essential to achieve optimal performance.

Advantages of Desiccant Air Dryers in Pharma

✅ Ultra-Low Dew Point Performance Ensures moisture-free air even in high-humidity environments, preventing condensation inside pipelines and equipment.

✅ Compliance with Pharmaceutical Standards Supports GMP, ISO 8573-1 Class 1 & 2 air quality requirements, and regulatory audits.

✅ Enhanced Product Quality Eliminates moisture-related contamination risks, ensuring consistent drug quality and shelf life.

✅ Equipment Protection Prevents corrosion, valve sticking, and instrument malfunction, extending equipment life.

✅ Reliable Operation in 24/7 Plants Designed for continuous operation with stable performance under varying load conditions.

Conclusion

In the pharmaceutical industry, there is no room for compromise when it comes to compressed air quality. A desiccant air dryer ensures ultra-dry, clean, and compliant air that protects products, processes, and reputation. Investing in the right desiccant air dryer not only helps meet regulatory standards but also enhances productivity, reduces downtime, and ensures consistent pharmaceutical quality.
