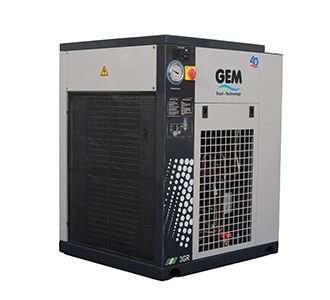

VFD Compressor Series Compressed Air Dryer

VFD Compressed Air Dryers - Efficient & Reliable Solutions- Gem Equipments

Mail Download Whatsapp

Back to Product List

Compact, lightweight & easy to operate.

SALIENT FEATURES:

  • Unrivalled Energy Savings up to 50% on indirect and up to 70% on direct energy costs by automatically adjusting motor speed to match actual air demand
  • Available in 6 sizes from 350 to 1415 l/s (750 to 3000 CFM) with working pressure up to 16 bar
  • Pressure dew point as low as +3°C / +37.4°F with constant purity class 4 per ISO 8573-1:2010
  • CFC-free R410a refrigerant with zero Ozone Depletion Potential (ODP), meeting strict F-Gas regulations
  • Advanced HMI Touch Controller with alarm history, remote monitoring and precise airflow management
  • Compact all-in-one design with single electrical connection for plug-and-play installation and quiet operation

Get a Quote Contact Us Catalogue Whatsapp



General Feature:

Schematic Diagram:Features Of Wall Mounting Dryer

Technical Specifications

MODEL MAXIMUM INLET CONDITION OF FULL FLOW PRESSURE DROP AT FULL FLOW POWER CONSUMPTION V/Hz/PHASE REFRIGERANT MAXIMUM WORKING PRESSURE INLET/OUTLET CONNECTION SIZE OVERALL DIMENSION (mm) WEIGHT (kg)
CFM m³/hr Bar Psi kW Amps     BAR Psi    Length Width Weight
3GVFD 075 750 1275 0.18 2.61 2.90 6.30 415 / 50 / 3 R410A 14 204 3" NB FLG 1300 920 1570 400
3GVFD 100 1000 1700 0.18 2.61 3.05 6.70 415 / 50 / 3 R410A 14 204 3" NB FLG 1300 920 1570 425
3GVFD 150 1500 2550 0.20 2.90 5.90 13.00 415 / 50 / 3 R410A 14 204 4" NB FLG 1600 1040 1840 800
3GVFD 200 2000 3400 0.20 2.90 6.90 18.00 415 / 50 / 3 R410A 14 204 4" NB FLG 1600 1040 1840 850
3GVFD 300 3000 5100 0.20 2.90 8.90 21.10 415 / 50 / 3 R410A 14 204 6" NB FLG 1800 1040 1840 1350

SPECIFICATION

Inlet Pressure Range 7-16Kg/cm2(g)
Inlet Temperature 45-55°C
Relative Humidity 100%
Ambient Temperature 20-40°C
Outlet Air Temperature Range 40-52°C
Design Pressure 17.6Kg/cm2(g)
Pressure Dew Point at outlet 2-4°C
Atmospheric Dew Point at outlet -20°C
Pressure Drop across the Dryer 0.2Kg/cm2(g)
Design Code IS 2825 Class III/IS:11989/ISO 7183
Control Circuit Rating 220 V/50 Hz
