Top Cool Refrigerated Compressed Air Dryer

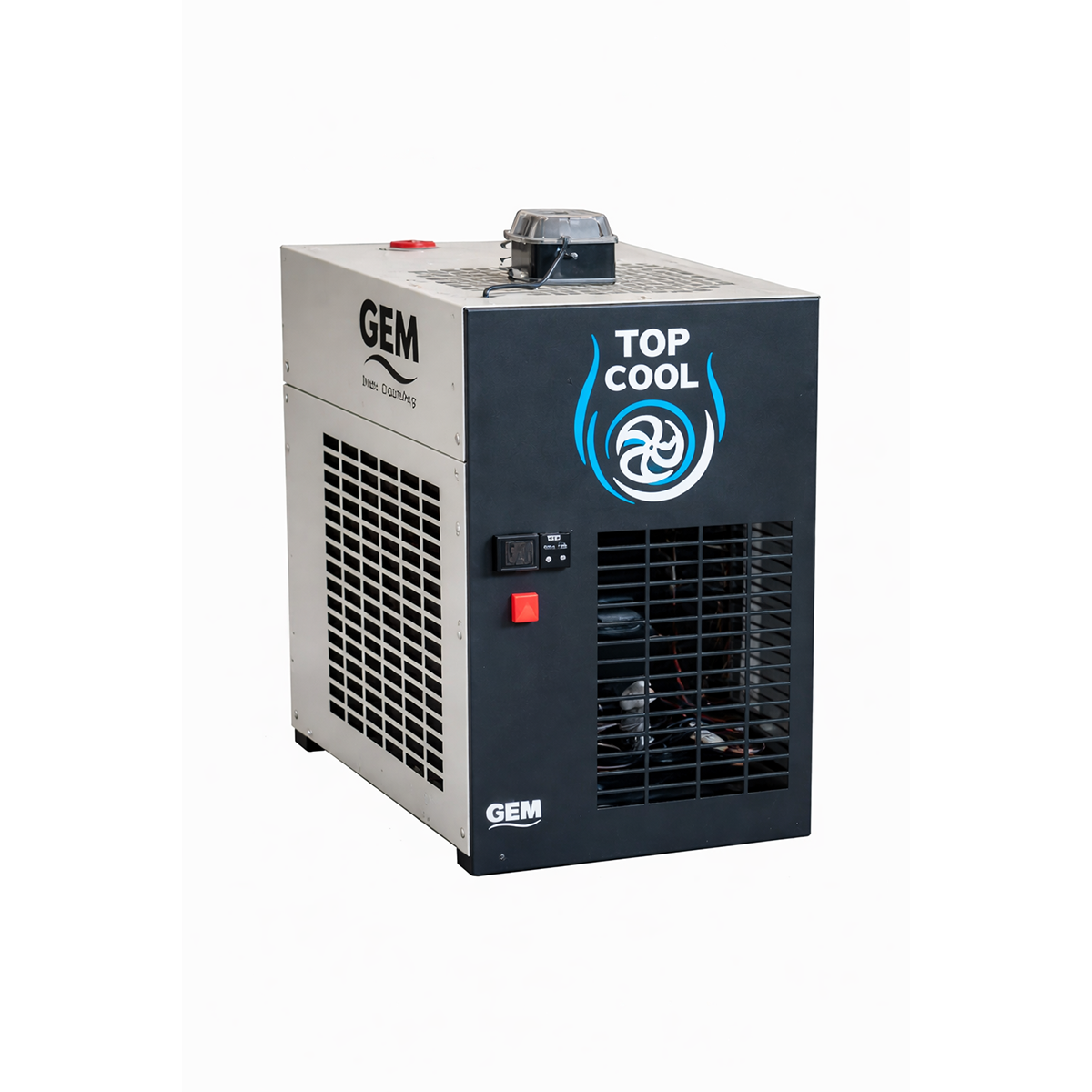

GEM 3GT Top Cool Refrigerated Compressed Air Dryer - 20 to 300 CFM - R134a Air Cooled - ISO 9001:2015 Certified - Made in India

Mail Download Whatsapp

Back to Product List

Compact, lightweight & easy to operate.

SALIENT FEATURES:

  • Pressure dew point as low as +3°C for consistently dry compressed air

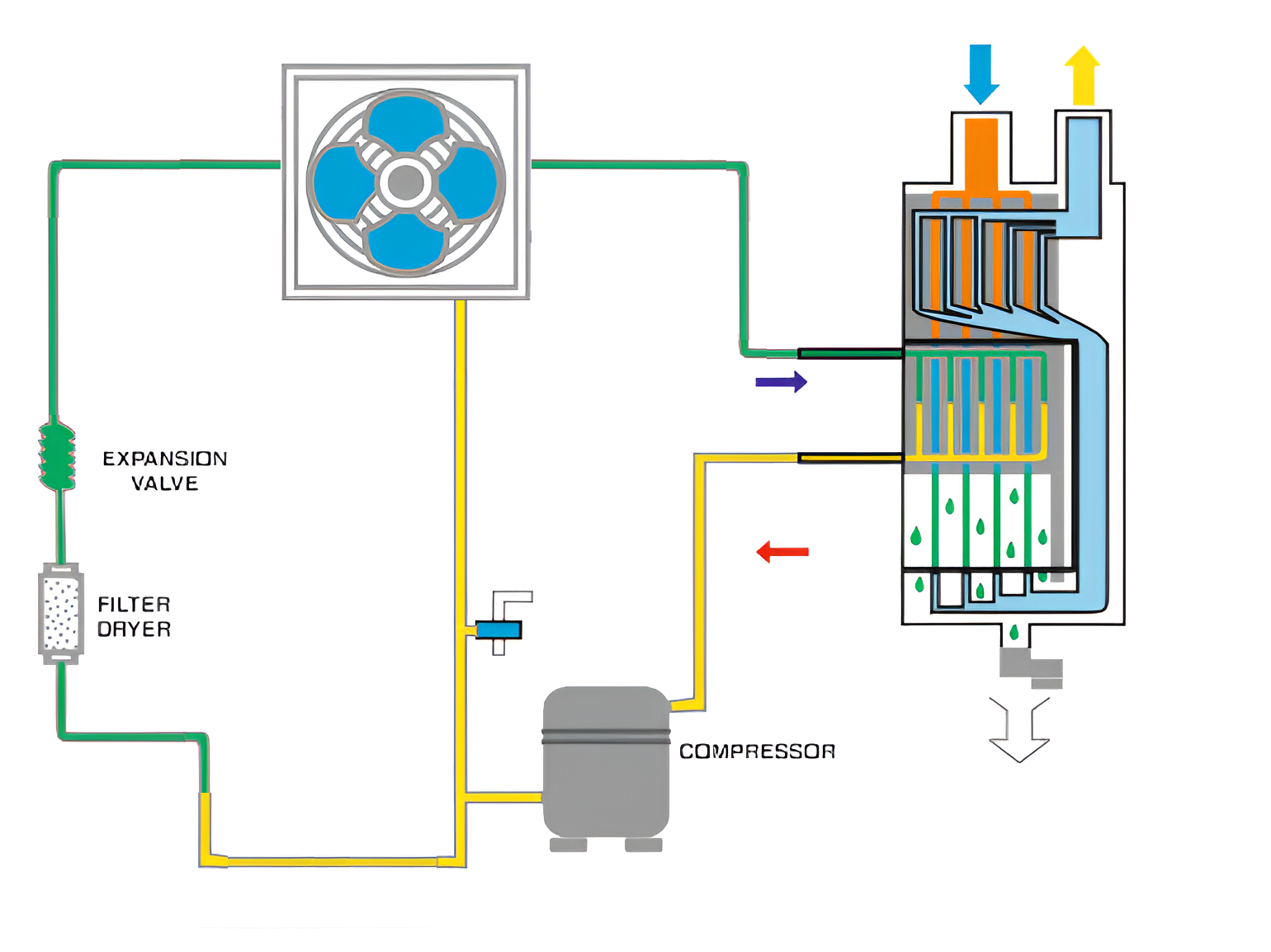

  • 3-in-1 aluminium heat exchanger — compact, efficient and corrosion-free
  • Top-mounted fan for effective cooling and self-cleaning horizontal condenser
  • Intelligent temperature controller for reliable system monitoring
  • Low pressure drop design for reduced energy consumption
  • Available in 20 to 300 CFM capacity at working pressure up to 16 kg/cm²

Get a Quote Contact Us Catalogue Whatsapp



GENERAL FEATURE:

Technical Specifications

MODEL MAXIMUM INLET CONDITION OF FULL FLOW PRESSURE DROP AT FULL FLOW POWER CONSUMPTION V/Hz/PHASE REFRIGERANT MAXIMUM WORKING PRESSURE INLET/OUTLET CONNECTION SIZE OVERALL DIMENSION (mm) WEIGHT (kg)
CFM m³/hr Bar Psi kW Amps     BAR Psi    Length Width Weight
3GT 002 20 34 0.20 2.84 0.22 1.40 220 / 50 / 1 R134a 16 228 1/2" BSP (F) 360 240 520 25
3GT 004 40 68 0.20 2.84 0.22 1.40 16 228 1/2" BSP (F) 360 240 520 30
3GT 006 60 102 0.20 2.84 0.28 1.80 415 / 50 / 3 16 228 1/2" BSP (F) 360 240 520 35
3GT 008 80 136 0.20 2.84 0.65 2.30 16 228 1" BSP (F) 540 350 600 45
3GT 010 100 170 0.20 2.84 0.73 2.30 16 228 1" BSP (F) 540 350 600 50
3GT 015 150 255 0.20 2.84 0.91 2.40 16 228 1" BSP (F) 540 350 600 65
3GT 020 200 340 0.20 2.84 1.18 2.55 16 228 1 1/2" BSP (F) 700 485 715 105
3GT 025 250 425 0.20 2.80 1.24 2.70 16 228 1 1/2" BSP (F) 700 485 715 115
3GT 030 300 510 0.20 2.84 1.24 2.70 16 228 2" BSP (F) 700 485 715 105

SPECIFICATION

Inlet Pressure Range 7-16Kg/cm2(g)
Inlet Temperature 30-60°C
Relative Humidity 100%
Ambient Temperature 30-50°C
Design Pressure 17.6Kg/cm2(g)
Pressure Dew Point at outlet 3-10°C
Atmospheric Dew Point at outlet -20°C / +3 to 7°C
Pressure Drop across the Dryer 0.2Kg/cm2(g)
Design Code IS:11989 / ISO 7183 / ISO 8673
Control Circuit Rating 220 V / 50 Hz
